Basic Info.
Model NO.
PST
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump
Model No
Pst
Horsepower
0.75-160kw
Suction Pipe
2"-6"
Material
Cast Iron
OEM
Accept
MOQ
3000USD
Shaft
Chrome Plating Steel
Seal
Mechanical Seal, Carbon-Sic-NBR
Bearing
NSK
Flange
Galvanized Counter Flange with Bolts, Screws and G
Motor
Insulation Class F, Protection IP 55
Transport Package
Standard Export Wooden Box
Trademark
Yeschamp
Origin
Zhejiang, China
HS Code
8413709990
Production Capacity
3000PCS/Year
Packaging & Delivery
Package Size
87.00cm * 40.00cm * 69.00cm
Package Gross Weight
231.000kg
Product Description

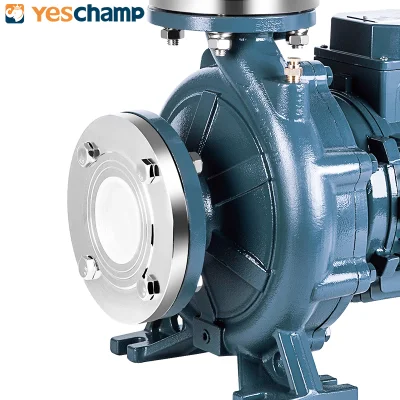

Horizontal Monoblock Industrial Centrifugal Pump for Use in Water Supply
PST, industrial centrifugal pump is composed of three parts: motor, link and pump head,which generally used for water supply, cleaning sets, irrigation,fire fighting sets.The water pump is connected by flanges, and each component adopts better materials, which enhances the service life of the water pump.
The industrial pump have two different pump head-smooth and rough, they are made of cast iron.The impeller is available in two materials-cast iron and stainless steel, for customers to choose.
The centrifugal monoblock pump can be installed on a steel base or connected with the controller according to the customer's requirements. Additional piping, pressure tanks, valves and sensing lines can also be provided if required.
The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 120 ºC.Ambient temperature is between-10°C and +50°C.The max. working pressure is 16 bar.
The horizontal centrifugal pump is suitable for use with clean water and liquids that are not chemically aggressive towards the materials.The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irigation, industrial
applications, water circulation in dlimatisation sets, agricultural.
Professional Water Pump Manufacturer and supplier
YesChamp is a professional manufacturer and supplier of quality pumps and engines export to more than 60 countries with competitive price.
Our main products are centrifugal pumps, fire pumps and system, industrial pumps, domestic pumps,sewage pumps, solar pumps, irragation pumps, motors and engines for pumps. We also designed and customer-built a wide range of fire pumps sets.
Yeschamp has its own factory 'Purity Pump' which has more than 10 years of pumps and motors production experience. And Purity Pump has been nominated as Chinese National High-tech Enterprise. We have over 200 employees, 20 engineers, 50 technicians, 10 after-sale service workers, and 20 salesmen which can provide our customers with one-stop full service.
Yeschamp has experienced sales team, professional technician and after-sale service team which can provide our customers with one-stop full service.
Yeschamp also has hundreds of cooperative factories and thousands of goods that can provide our clients with multiple choices, comparable prices,good service and quality.
Yeschamp sales staff can provide 24 Hours One-stop Service from quotation, order fulfillment to inspection, certification, freight, etc.
Yeschamp also has experienced QC and QA staff which ensure strict quality control and inspection. We have the latest technology and quality products allowing us to give our customers the service. We also focus on the feedback of all clients to ensure that equipments supplied are efficiently running and properly used.
With the tenet of 'Innovation, High Quality, Customer Satisfication', we are striving for the top-ranking brand of pumps and engines. And we are dedicated to the continual improvement of our customer service, products and credit.Our target is to solve all the problems from our customers and make the choice for them.
PST, industrial centrifugal pump is composed of three parts: motor, link and pump head,which generally used for water supply, cleaning sets, irrigation,fire fighting sets.The water pump is connected by flanges, and each component adopts better materials, which enhances the service life of the water pump.
The industrial pump have two different pump head-smooth and rough, they are made of cast iron.The impeller is available in two materials-cast iron and stainless steel, for customers to choose.
The centrifugal monoblock pump can be installed on a steel base or connected with the controller according to the customer's requirements. Additional piping, pressure tanks, valves and sensing lines can also be provided if required.
The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 120 ºC.Ambient temperature is between-10°C and +50°C.The max. working pressure is 16 bar.
The horizontal centrifugal pump is suitable for use with clean water and liquids that are not chemically aggressive towards the materials.The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irigation, industrial
applications, water circulation in dlimatisation sets, agricultural.
| DN Range of Suction Pipe | 50-150 mm (2"-6") |
| DN Range of Discharging Pipe | 32-125 mm (1.5"-5") |
| Flow Capacity Range | 0-400m3/h |
| Head/Pressure Range | 0-15 Bar |
| Power Range | 0.75-160Kw |
