Basic Info.
Product Description

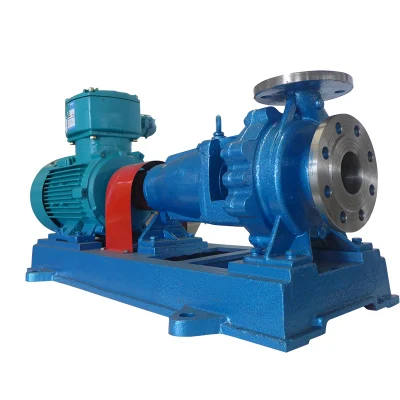

| Product Name | IH horizontal stainless steel centrifugal pump |
| Material | SS304,SS316, SS316L,CD-4MCu, SS904, SS904L and hastelloy etc. |
| Standard | ISO, ASME, ANSI |
| Flow rate | 3.4m3/h to 600m3/h |
| Head | 3.6 to 132m |
| Voltage | 220V/380V/415V/460V or as customer required |
| Design pressure | 1.6MPa |
| Working temperature | -40ºC to +200ºC |
| Warranty | 12 months |
| Applilcation | IH pump has been utilized in chemical industry, petroleum, petroleum,metallurgy, light industry,printing and dyeing,pharamcy,environmental protection, deselination of seawater, oil extraction in the sea, paper-making, foodstuff, brew etc. To transport organic or inorganic medium with no pellet, petroleum and corrosive liquid. |
Main Characteristics
*IH pump has a strength desine in the pump body and suspended frame, making it better in appearance, safe and reliable operation, and also has a longer life
*Suspension cross sery products have an outstanding design for heat sink and also increase the cooling devices, which ensures to meet different and complexed requirements of indust rial and mining projects, and also accelerates the delivery and inventory.
*According to customers' actual requirements, the pump's shaft sealling can be divided into
packing seal,packing seal with outside washing, single face unbalanced seal,single face unbalanced seal with outside washing, double face unbalanced seal,
double face unbalanced seal with outside washing, single face balanced seal with outside washing, dynamic seal, external mounted seal, and special seal, etc.
*The standard configuration of coupling is three stage uninstalled couplings. This design makes sure that three is no need to remove inlet&outlet connection line, body of the pump and the enginee if maintenance. Also the connection types can be short sub type, direct connection type and diaphragn type.
*The impeller of pump body is precision casting, also has closed type, semi-open type and open type.
If you have any others pump type require, please free contact us
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
